CBX Hot Gas Bypass Valve for Water Chiller

FOB Reference Price:Get Latest Price
$8.00 - $20.00 / Pieces | 3 Piece/Pieces CBX Hot Gas Bypass Valve for Water Chiller MOQ 3PCS (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
STF
Model Number:
CBX Hot Gas Bypass Valve for Water Chiller
Application:
General
Material:
Brass, Brass
Temperature of Media:
Normal Temperature
Pressure:
High Pressure
Power:
Pneumatic
Media:
HFC and HCFC
Port Size:
3/8,1/2 8MM
Structure:
Regulating
Medium:
Suitable for HFC and HCFC
Model:
CBX Hot Gas Bypass Valve for Water Chiller
Connection Type:
ODF connecting
Maximum working pressure::
28bar
Weight:
0.7kg
Usage:
discharge pressure
Standard or Nonstandard:
Standard
Supply Ability
Supply Ability:
400 Piece/Pieces per Week CBX Hot Gas Bypass Valve for Air Drier SAMPLES ARE AVAILABLE
Packaging & Delivery
Packaging Details
CBX Hot Gas Bypass Valve for Air Drier normally closed Export cartons:31*25*21cm then into plastic pallet.
Port
SHANGHAI
Lead Time :
Shipped in 5 days after payment



Product Description

CBX Hot Gas Bypass Valve for Water Chiller



General Characteristics

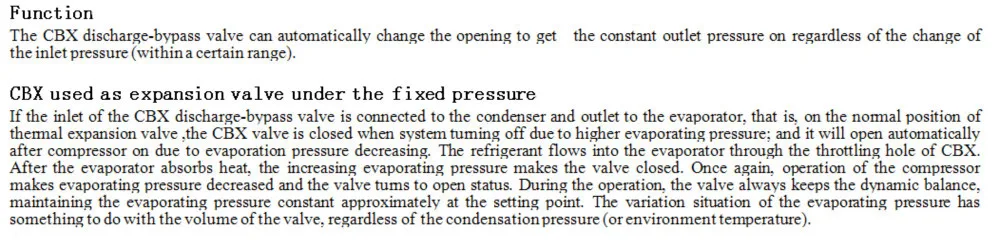

  • The CBX discharge-bypass valve is a kind of load adjust component for the refrigerating system with a non-adjustable compressor.
  • The CBX discharge-bypass valve can be used as automatic expansion valve under fixed pressure to maintain the fixed evaporation pressure (temperature).
  • The CBX discharge-bypass valve is capable of maintaining the minimum evaporating pressure.
  • ODF connecting.
  • Suitable for HFC and HCFC.
  • Maximum working pressure: 28bar.

Technical data



  Model                           Nominal capacity (kw)Connection         size
R134aR22R407cR404A/507R410A
CBX-0112.22.11.43      ODF Inlet:φ8 Outlet:φ12
CBX-021.83.53.42.64.4
CBX-032.644.84.33.56
CBX-043.25.95.34.37.4
CBX-053.876.25.18.8
CBX-064.487.85.810
CBX-075.59.78.87.112
CBX-086.61210.89.614.5
CBX-097.914.412.911.5217.6
CBX6-0110.5617.617.612.3226.4Inlet:3/8,1/2 Outlet:5/8,3/4,7/8
CBX6-0212.3221.1221.1214.0835.2
CBX6-0317.624.6424.6415.8438.72
CBX6-0421.1228.1628.1619.3645.76



Note: Condensing temperature Te=3℃, evaporating temperature Tc=38℃; Refrigerant temperature ahead of valve: TL=37℃; Subcooling: Tsub=1k;



Adjustable Vage and Setting Pressure

Refrigerant

 Adjustable Vage

 Setting Pressure

R134a,R22,R407c,R404A/507

1-7 bar

4bar

R410A

1-12 bar

7.5bar





Dimensions



       CBX Discharging Valve                        CBX6 Discharging Valve



Packaging & Shipping



CBX Hot Gas Bypass Valve for Water Chiller normally closed Export cartons:31*25*21cm then into plastic pallet.

Delivery Detail: 15days after receiving deposit



Advantages



Company Information




Production Flow



Certifications



FAQ



1.Q: What is your main market?

   A: Our main market is north America, especially USA.

2.Q: Are you products standard?

   A: Our model is standard, if you have specific demand, pls tell us.

3.Q: Do you have interest to do our own design items?

   A: Absolutely! We have big interest.



Our Services



1)Our advantage:



 We are the manufacturer with more than 60 years experience in valves. Best price,quality and service, Also we can control the production status.



Shanghai Thermostat team with strong ability in designing and after sell service. Cooperation with ALCO,Carrier, Johnson Controller has improved our quality to a new level.



2)Terms of payment: T/T, L/C, Western union.

3)Shipment: average 20-25days after receiving deposit.

4)Delivery:  Shanghai ,by sea or air.

5)Gurantee: One year since delivery.

6)Inspection: 100% testing for all the valves.

7) All kinds of CERTIFICATE OF ORIGIN.



Welcome to choose Shanghai Thermostat Factory, we are always ready!
